Background

ShipWorks connects directly to your Walmart Seller Center account via the Walmart API. With one click, or on an automated schedule, your orders are downloaded from Walmart. As soon as you process a shipment, ShipWorks communicates the updated order status, shipping method and tracking information back to Walmart.

This article will guide you through how to add Walmart Seller Center to The Hub. For information on how to connect Walmart in the ShipWorks Software, please see Walmart: Add a Store to ShipWorks.

If you already have Walmart connected to ShipWorks and need assistance with updating the store connection to use the new Walmart API, please see our article, Walmart: Update Connection to oAuth.

First Things First

We recommend that you run the latest version of the ShipWorks software. This allows you to access the latest tools and features and ensures the steps in this article will work for you. For assistance with checking your version of ShipWorks or with upgrading to the latest version, please see the How Do I Upgrade ShipWorks help article.

Walmart Seller Center Only

ShipWorks connects to Walmart Seller Center. Walmart Supplier Center is not supported.

Before connecting Walmart Seller Center to ShipWorks, there are a few things you will need:

  • Walmart connects to ShipWorks using your Walmart Seller Center account credentials (Client ID: and Client Secret:). If you have previously created a ShipWorks Client ID and Client Secret, follow the steps in this Walmart guide to obtain your account credentials. Otherwise, you will be guided through creating these in the following steps.

  • You will need to be logged in to The ShipWorks Hub.

The Process

Connection Steps in Walmart

  1. Log in to the Walmart Developer Center.

    Walmart Login Credentials

    Use the same credentials you would use to access Walmart Seller Central.

  2. Click on + Add a New Key For A Solution Provider.

    Do you have a solution provider button marked

  3. Select ShipWorks from the Add a new delegateed access key: drop-down menu. Then, click Next.

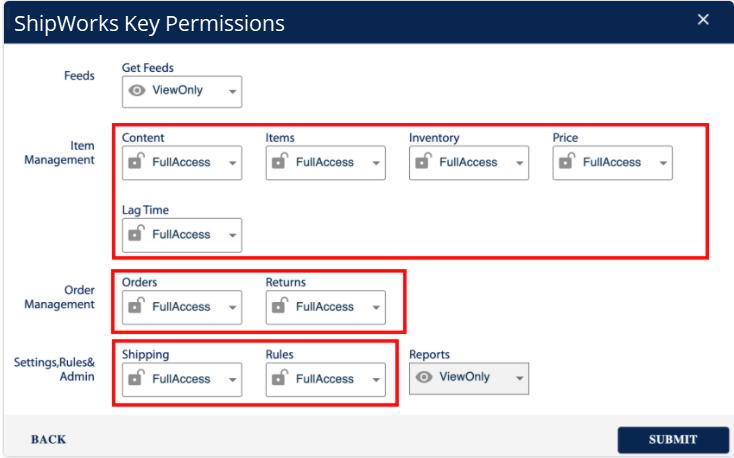

  4. Choose Full Access from the drop-down boxes on the ShipWorks Key Permissions page. Then, click Submit.

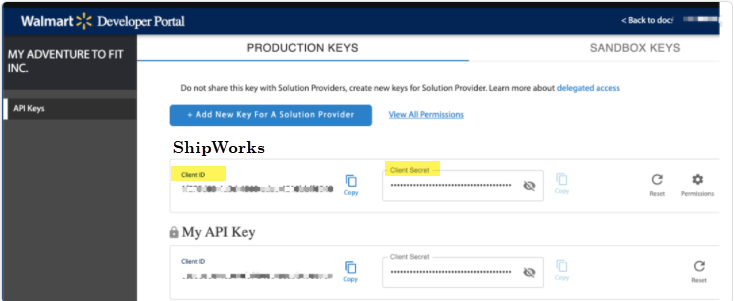

Your ShipWorks Client ID and Client Secret will be displayed for you. Stay on this screen as you will need to copy your ID and Secret into ShipWorks in a few moments.


Connect Walmart in The ShipWorks Hub

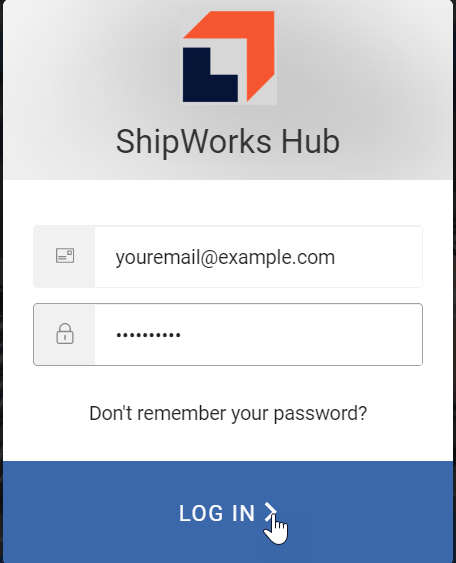

  1. Navigate to hub.shipworks.com and log in.

    Log in using your new password.

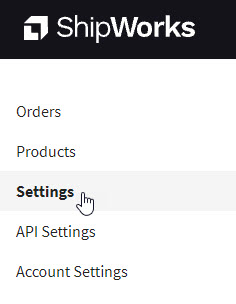

  2. Click Settings.

    Click on Settings

  3. Click the Connect Order Source button in the Order Sources section.

    Connect Order Source

  4. Click Walmart.

    The Walmart logo on the connect Walmart button.

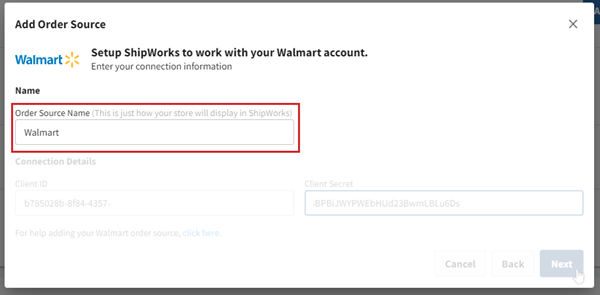

  5. Enter a name for your store in the Order Source Name field. (This is the name for your Walmart store that will be displayed in The Hub and the ShipWorks software.)

    The Walmart add order source screen is shown with the order source name fields highlighted.

  6. Enter your Walmart issued Client ID and Client Secret. Then, click the Next button.

    The Walmart add order source screen is shown with the client ID and client secret fields highlighted.

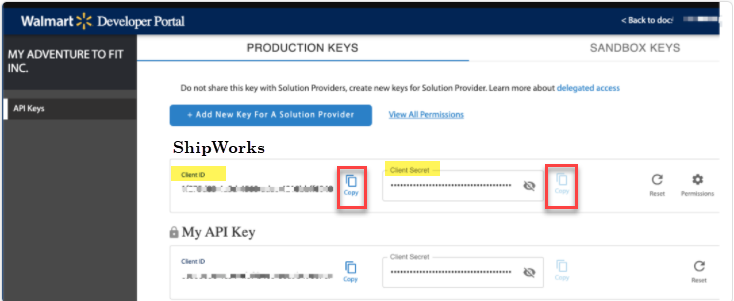

    Copy and Paste

    You created your Client ID: and Client Secret: in the previous section of this article. Copy both from the Walmart Developer portal into the correct fields in The Hub.


  7. Enter the address and contact information for your Walmart store. Then, click the Next button.

    This information is optional. However, if entered it will become the default Ship From address for your Walmart store in ShipWorks.

    The Walmart add order source contact information screen is displayed.

  8. We recommend leaving the Upload my online orders with the shipment details checkbox checked. Click Finish.

    With the checkbox unchecked, orders will not be updated with shipment details in Walmart Seller Center.


Walmart will now be connected and will display in the Order Sources section of the Settings screen.

Edit the Walmart Connection in the ShipWorks Hub

Modify the connection to Walmart and update the store settings in The Hub. Here's how:

  1. Click on the Edit button to the right of Walmart in the Order Sources section of the Settings screen.

    Walmart is shown in the order sources list. The edit button is highlighted.

  2. Select to edit either the store Connection or store Settings.


    • Connection: This option allows you to update or change how ShipWorks connects to Walmart.

    • Settings: This option allows you to update

      • Address: The address associated to your Walmart store in ShipWorks

      • Desktop Settings: The name associated to the Walmart store in ShipWorks, how orders manually entered in ShipWorks are handled, and Address Validation settings for this store.

Walmart in the ShipWorks Software

Sync Walmart with the ShipWorks Software

After successfully adding Walmart as an order source in the ShipWorks Hub it is recommended that you exit the ShipWorks client software and relaunch it. This will force the ShipWorks software to resync with the Hub so that it can configure the Walmart connection and download orders.

After syncing with the Walmart order source in The Hub:

  • The new Walmart store will be added in Manage > Stores .

    When editing the store in the ShipWorks software, the store address, manual store settings, and store connection are grayed out and must be edited in The Hub.

  • Filters will be created in the ShipWorks software for orders downloaded from Walmart.

    Walmart filters shown in the ShipWorks software.

  • Walmart orders will be downloaded into The Hub and into the ShipWorks software. It may take up to 15 minutes for your Walmart orders to appear.

Still Need Help?

Please feel free to reach out to one of our awesome Technical Support Representatives in St. Louis.  We are happy to help.
