BigCommerce: Add a Store (OAuth API)

Avatar

ShipWorks Content Team

Updated

Background

BigCommerce’s cloud-based platform enables merchants to grow their mid-market brand businesses. ShipWorks connects directly to your BigCommerce account. With one click, or on an automated schedule, your orders are downloaded from BigCommerce. As soon as you process a shipment, ShipWorks communicates the updated order status, shipping method and tracking information back to BigCommerce.

This article will guide you through how to connect to your BigCommerce store using the BigCommerce OAuth API. If you need information on how to connect BigCommerce using the legacy API, please see this article.

First Things First

Prior to connecting ShipWorks to your BigCommerce store, there are a few things you will need to have in place:

  • So that you can be sure that you have access to all of the latest tools and features that ShipWorks has to offer and so that you can ensure the steps in this article will work for you, we recommend making sure that you are running the latest version of the ShipWorks software. For assistance with checking your version of ShipWorks or with upgrading to the latest version, please see this help article.

  • You will need to obtain your BigCommerce API Path, Client ID, and Access Token. (instructions are below). Please have your BigCommerce admin panel username and password available.

The Process

Creating the BigCommerce Auth Token

1. Log into your BigCommerce administrator panel.

2. Click on the Settings link in the navigation menu.

Settings is highlighted in the Big Commerce navigation.

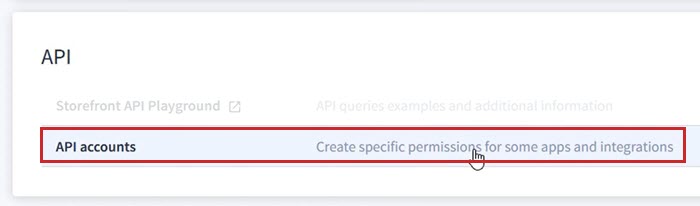

3. Click on API accounts in the API section of the page.

API accounts is selected in the API section of the Big Commerce settings page.

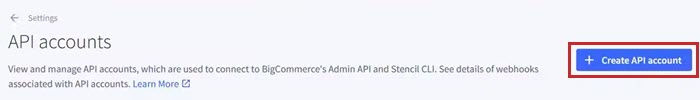

4. Click on the Create API account button.

The create API account button is highlighted on the API accounts page.

5. On the Create API Account screen, give the connection a descriptive name.

naming the bigcommerce api connection name

6. Make note of the API Path. You will need this path when adding BigCommerce to the ShipWorks software.

bigcommerce api path with arrow and verbiage

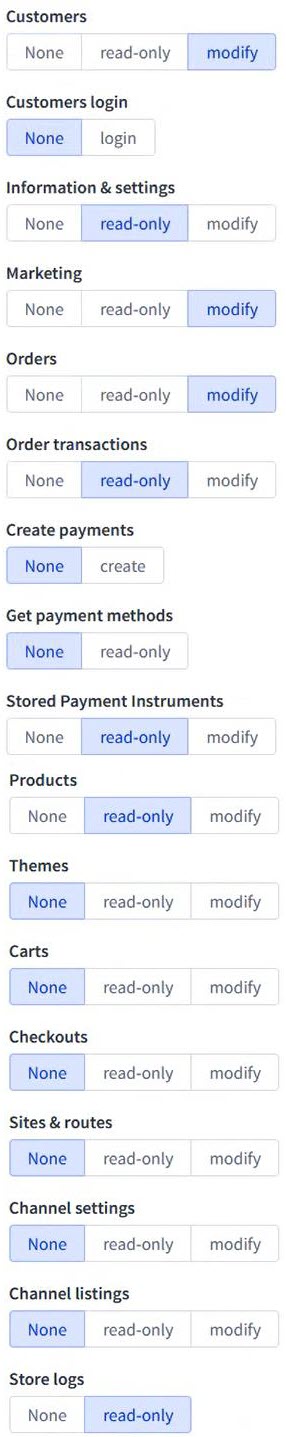

7. Set all of the OAuth Scopes to match the below screenshot.

Big Commerce API scopes and permissions configured for ShipWorks

8. Click Save.

bigcommerce save button

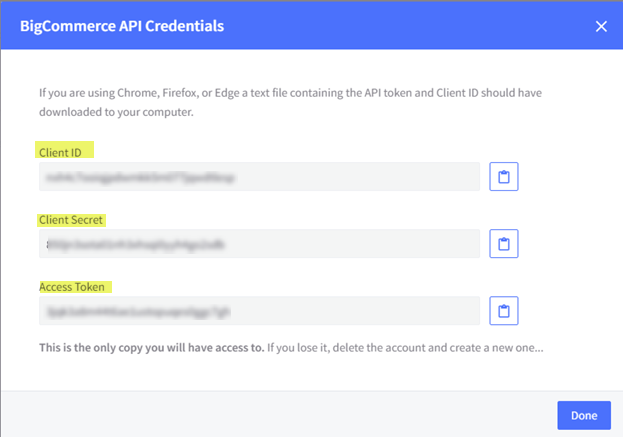

9. The BigCommerce API Credentials screen is displayed. Please note: This is the only time that this information is displayed.

Copy, write down, or take a screenshot of the information on this screen and save it to a secure location. You will need it when adding BigCommerce to ShipWorks. Click Done once you have securely saved this information.

bigcommerce api credentials screen

Adding BigCommerce to ShipWorks

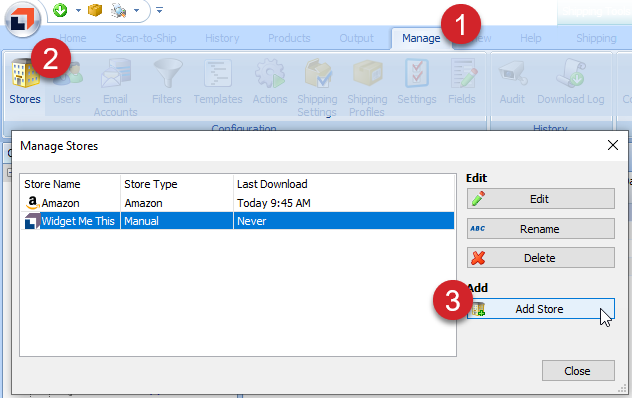

1. Click on the Manage tab, then on the Stores button. Then, click Add Store.

Click the Manage tab then the Stores button. Then click Add Store.

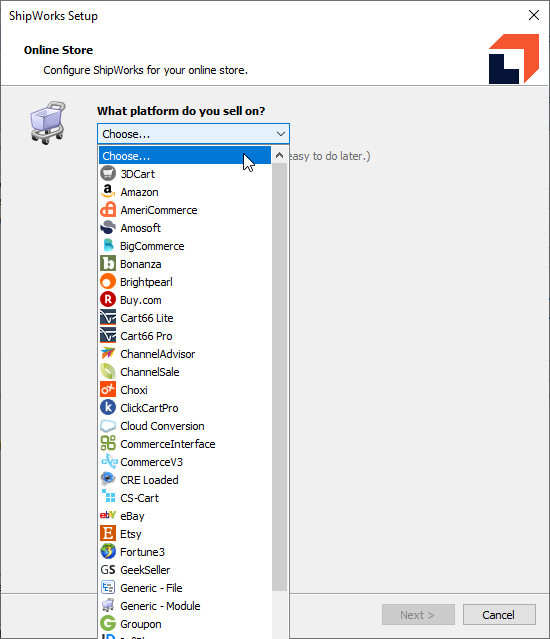

2. Select the platform you are adding to ShipWorks from the What platform do you sell on? drop-down menu. Then, click Next.

Select the store type from the dropdown menu.
Box highlights the Next button.

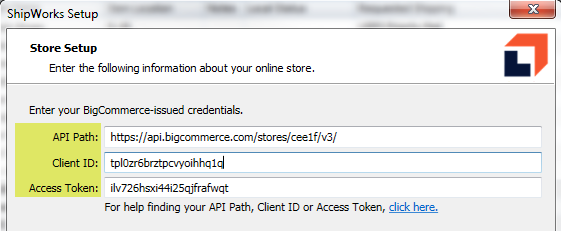

3. Enter the API Path, Client ID, and Access Token you obtained from the previous steps. Then, click Next.

Secure API Path URL

Ensure that the API Path: URL is entered as a secured URL, beginning with https://, as shown in the below screenshot.

bigcommerce add store wizard rest api credentials

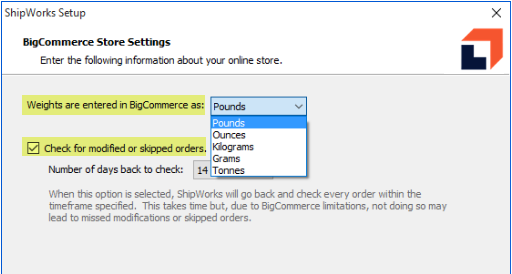

4. On the BigCommerce Store Settings screen:

  • Weights are entered into BigCommerce as: - Select the unit of weight measure that you use in BigCommerce for your products.

    • Note: If you are unsure, please go back to your BigCommerce store and double-check. Selecting the wrong option may cause adverse effects in ShipWorks with how weights are displayed.

  • Check for modified or shipped orders: - It is recommended to leave the default settings.

bigcommerce add store wizard weights and check for modified orders
Box highlights the Next button.

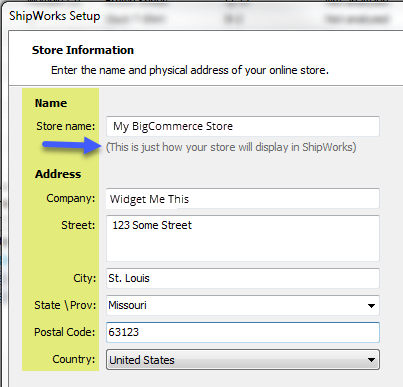

5. Enter the Store Name and Address information on the Store Information screen and click Next.

add store wizard store information with bigcommerce
Box highlights the Next button.

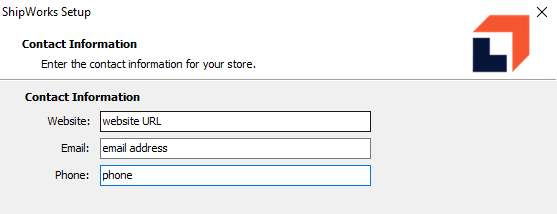

6. Enter the additional Contact Information and click Next. Note that this information is optional.

Contact information screen in add store wizard
Box highlights the Next button.

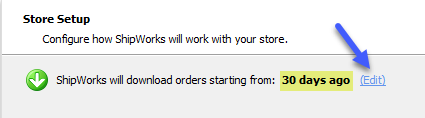

7. Select how much order history you would like to download into ShipWorks during your initial download. The default is to download 30 Days of order history into ShipWorks. You can modify this by clicking on the Edit link.

The store setup screen in ShipWorks is displayed and the Edit link is highlighted.
Add Store wizard select download days

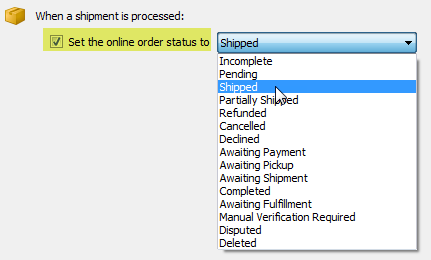

8. Select the order status to which you would like ShipWorks to update the order after an order is processed from the Set the online order status to drop-down menu. Then, click Next.

add store select store status after processing
Box highlights the Next button.

9. Click Finish then click Close. Your orders will begin to download automatically.
