ODBC: Downloading Orders with Barcode Scan

You will need to enable the On Order Search Only option in your ODBC store in ShipWorks. Here's how:

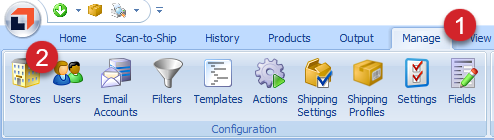

Click on the Manage tab and then on the Stores button.

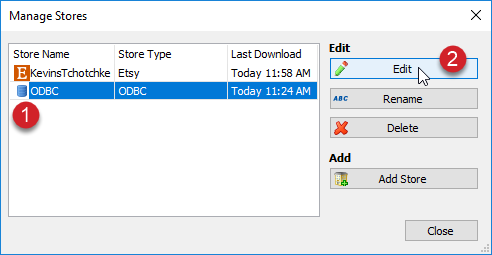

2. Select your ODBC store and click the Edit button.

3. Select the Store Connection link on the left side of the Store Settings screen.

4. Click the Edit Import Settings... button.

5. Click the Next button on the Import Settings screen.

6. Select the option for On order search only. Then, click Next.

7. Click Next, then Finish, then OK, then Close.

Now that the On Order Search Only option is enabled, you can download orders by searching for the order number.

Manual Search (no scanner)

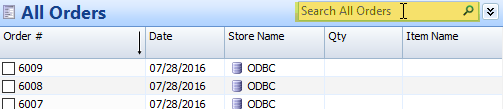

Enter the order number into the Search All Orders box in ShipWorks for the order you wish to download.

On a Barcode Scan

With Scan-to-Ship enabled, when you scan a barcode, the value of the barcode will automatically be populated into the Search all Orders field.

Using either of the above methods, ShipWorks will first search the ShipWorks database and display any orders matching the order number that was entered. Then, it will check for an order with a matching order number from your ODBC source and, if found, will download the order into ShipWorks.

If no orders are found in the ShipWorks database or in the ODBC source, a message will display that no matching orders were found.

If a matching order number is located in the ShipWorks database but not in the ODBC source, the ShipWorks order will be displayed.

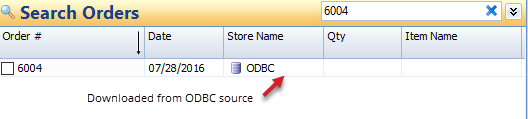

If a matching order number is NOT located in the ShipWorks database, but is located in the ODBC source, the order will be downloaded and displayed in ShipWorks.

If an error occurs when attempting to download an order from the ODBC source, an error will be displayed.

The download log can be opened by clicking on the Manage tab and then on the Download Log button.

If you scan an order number or search for an order that has already been downloaded into ShipWorks, the order will be downloaded from your ODBC source again. This is helpful when you have made changes to an order outside of ShipWorks and need to download those changes into the ShipWorks software.

It is important to note that this will not delete any changes made to the order inside of the ShipWorks software. For example, if you have added a note to an order or processed any shipments for an order in ShipWorks, downloading the order again will not delete the note or shipment history.
